Subframe Bolts (Upgrade)

When I go to www.klr650.com and I look at their subframe upgrade I noticed drill bits in the picture. What are those for?

2008 KLR650
Kawi_KLR650 is offline
Sponsored Links
Advertisement

post #2 of 12 Old 03-31-2008, 12:34 PM
2nd Gear

josbek's Avatar

Join Date: Oct 2006
Location: Payson, AZ
Posts: 207
Send a message via MSN to josbek
The bits are to drill through the upper sub frame mounting points on the main frame. The smaller creates a pilot hole which is made the proper size by the larger. Best to use a good drill, 1/2 inch if possible. It will take a while so be patient.
Have some rags to cover the openings in the airbox & carb & any other openings you see.

Here is my experience if you are interested: http://www.klrforum.com/showthread.p...ight=sub+frame

John

Old Fahrt
Too young for medicare
Too old for women to care
I aint paranoid. The whole world IS out to get me.

Last edited by josbek; 03-31-2008 at 12:42 PM.
josbek is offline
post #3 of 12 Old 03-31-2008, 01:07 PM
4th Gear

DXKLR's Avatar

Join Date: May 2007
Location: Richmond, Ky
Posts: 1,980
Yep, patience is a virtue doing this, but well worth the effort, if you plan on carrying some heavy loads.

2008 DL650 VStrom Yellow and Black
Previous ride was a 2007 KLR Black/Silver, I miss it..
Looking to get back into KLR's sometime soon.

Best Auto/Moto Insurance | Motorcycle Protection Today | FREE Trade-In Quote
DXKLR is offline

post #4 of 12 Old 04-05-2008, 11:20 PM
3rd Gear

Paulo888's Avatar

Join Date: Feb 2008
Location: L.A. Native
Posts: 517
Just did the subframe upgrade. I had the bigcee bolts in my toolbox since OCTOBER of 02. Yes, I'm a slacker but i used to work 16 hour days, 6 days a week, 3.5 hours a day in L.A. traffic but I owned my own brand new house with 3 car garage.

94 KLR,tank guards,sw motech centerstand,Doo done, african switch,mirror dampners, powerpegz, twisted throttle fuses, aluminum skidplate, Bigcee shark disc and jug holder and subframe upgrade, progrip grips,maier handguards/brushguards, avon distanzias,fmf q4 exhaust, headlight guard, handlebar risers, billet rear brake reservoir bracket and guard, dual star shifter,garmin 2820 gps, tmod,disc cover, pcv mod,corbin flat
Paulo888 is offline
post #5 of 12 Old 04-05-2008, 11:40 PM
4th Gear

DXKLR's Avatar

Join Date: May 2007
Location: Richmond, Ky
Posts: 1,980
That farkle list is getting LONGGGGGg Paulo... You been busy.. LOL

2008 DL650 VStrom Yellow and Black
Previous ride was a 2007 KLR Black/Silver, I miss it..
Looking to get back into KLR's sometime soon.

Best Auto/Moto Insurance | Motorcycle Protection Today | FREE Trade-In Quote
DXKLR is offline
post #6 of 12 Old 04-06-2008, 12:23 AM
3rd Gear

Paulo888's Avatar

Join Date: Feb 2008
Location: L.A. Native
Posts: 517

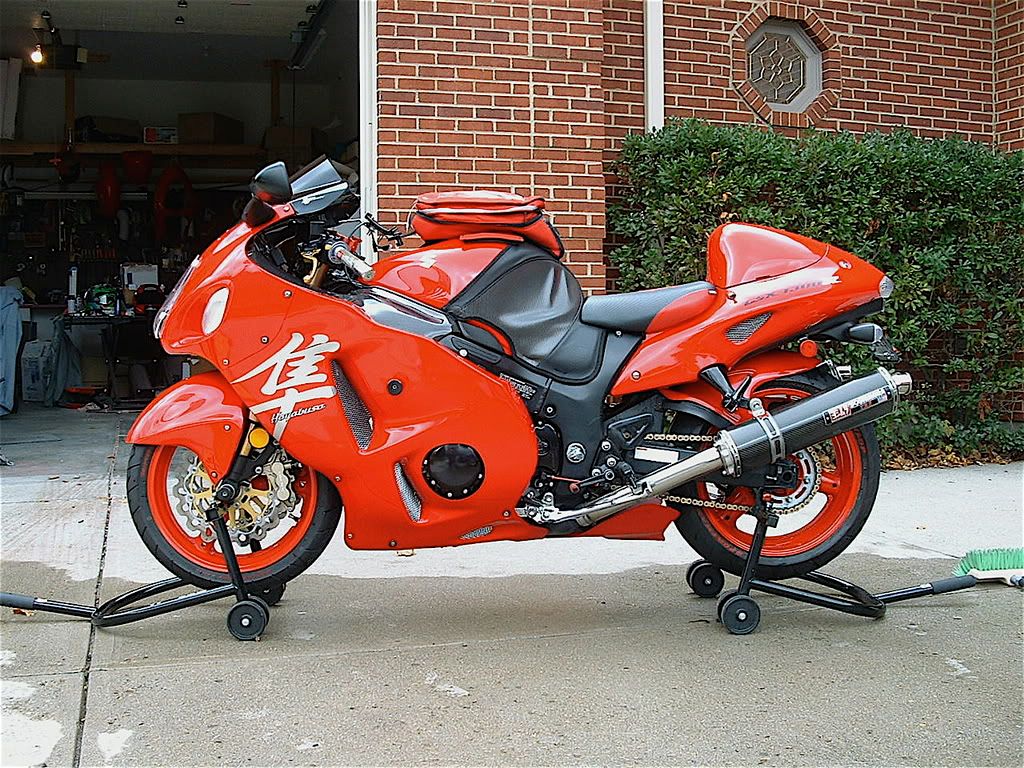

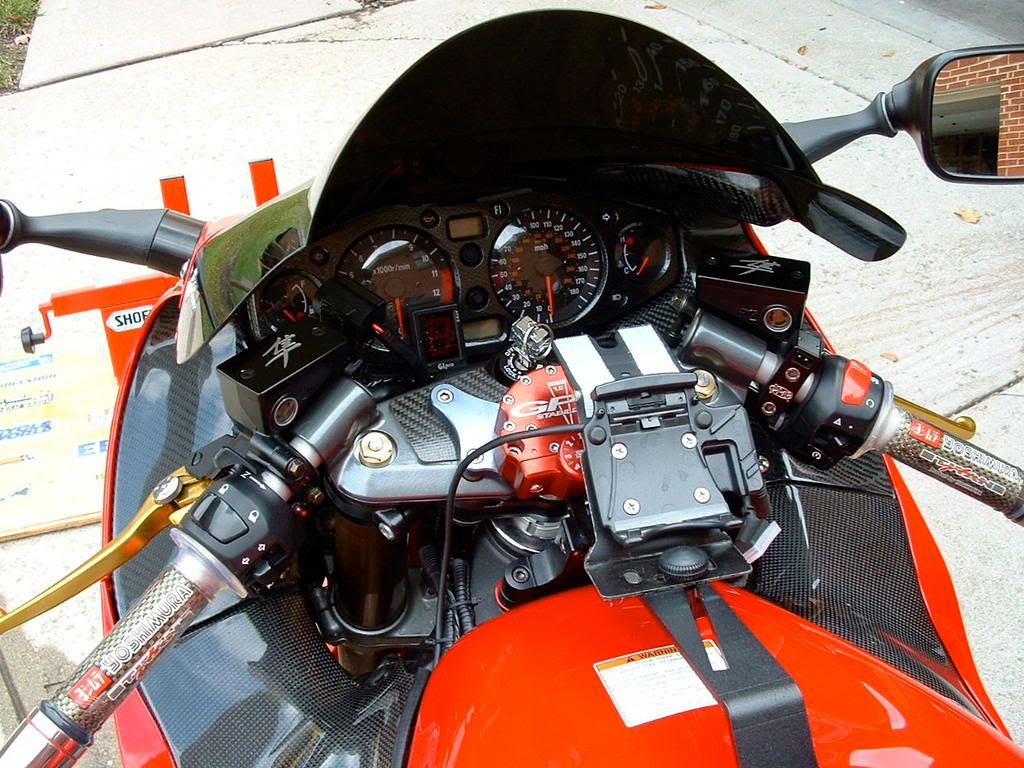

I have this disease. When i jump into something, I usually GO BIG. My Hayabusa suffers from the same affliction.

94 KLR,tank guards,sw motech centerstand,Doo done, african switch,mirror dampners, powerpegz, twisted throttle fuses, aluminum skidplate, Bigcee shark disc and jug holder and subframe upgrade, progrip grips,maier handguards/brushguards, avon distanzias,fmf q4 exhaust, headlight guard, handlebar risers, billet rear brake reservoir bracket and guard, dual star shifter,garmin 2820 gps, tmod,disc cover, pcv mod,corbin flat
Paulo888 is offline
post #7 of 12 Old 04-06-2008, 11:45 AM

Join Date: Jun 2007
Posts: 113
nice busa
Whitey is offline
post #8 of 12 Old 04-07-2008, 11:44 AM Thread Starter
2nd Gear

Join Date: Mar 2008
Location: Oregon
Posts: 160
Send a message via Yahoo to Kawi_KLR650
Was the subframe upgrade easy to do? I am going to do it myself one of these days.

2008 KLR650
Kawi_KLR650 is offline
post #9 of 12 Old 04-07-2008, 01:17 PM
3rd Gear

Paulo888's Avatar

Join Date: Feb 2008
Location: L.A. Native
Posts: 517
Thanks, Whitey. KAWI Besides having to take a bunch of stuff off(tank, rear exhaust,loosening the carb boot..minor things) ,The drilling is the hardest part and a 1/2 air drill or strong electric drill with new or sharp drill bits make quick work of the hole enlargening. And while your tank is off, line up some other tasks like changing your spark plug, adjusting valves, Maybe upgrade your horn, changing the glass fuses with blade types etc,... TPI has a April special going on- free shipping for anyone interested

94 KLR,tank guards,sw motech centerstand,Doo done, african switch,mirror dampners, powerpegz, twisted throttle fuses, aluminum skidplate, Bigcee shark disc and jug holder and subframe upgrade, progrip grips,maier handguards/brushguards, avon distanzias,fmf q4 exhaust, headlight guard, handlebar risers, billet rear brake reservoir bracket and guard, dual star shifter,garmin 2820 gps, tmod,disc cover, pcv mod,corbin flat

Last edited by Paulo888; 04-07-2008 at 01:19 PM.
Paulo888 is offline
post #10 of 12 Old 04-07-2008, 06:15 PM
4th Gear

DXKLR's Avatar

Join Date: May 2007
Location: Richmond, Ky
Posts: 1,980
Don't forget to do the Carb T mod while your under there too. Shoot if ya got some miles on the bike say around 6000 and not had it checked, this would be good time to do a valve clearance check and replace shims if needed. +1 on BIG drill and good bits. I don't remember having to remove exhaust tho or messing with my carb while doing my subframe. My Mad Kaw disease is becoming annoying...LOL

2008 DL650 VStrom Yellow and Black
Previous ride was a 2007 KLR Black/Silver, I miss it..
Looking to get back into KLR's sometime soon.

Best Auto/Moto Insurance | Motorcycle Protection Today | FREE Trade-In Quote
DXKLR is offline
